Longer Service Life: Our LiFePO4 battery provides 2500 – 7000 cycles & a 10 years lifetime compared to 200 – 500 cycles & a 3 years lifetime in typical Lead Acid chemistry.
Efficient Power: Our LiFePO4 battery’s flat discharge curve holds above 48V for up to 95% of its capacity usage providing astronomical boosts in run-time compared to only 50% in Lead Acid.
Impeccably Lightweight: Our LiFePO4 battery is only 1/3 of the weight of Lead Acid which makes it the disputable choice for RVs, Marine, and Off-Grid Applications when towing or mobility is in consideration.

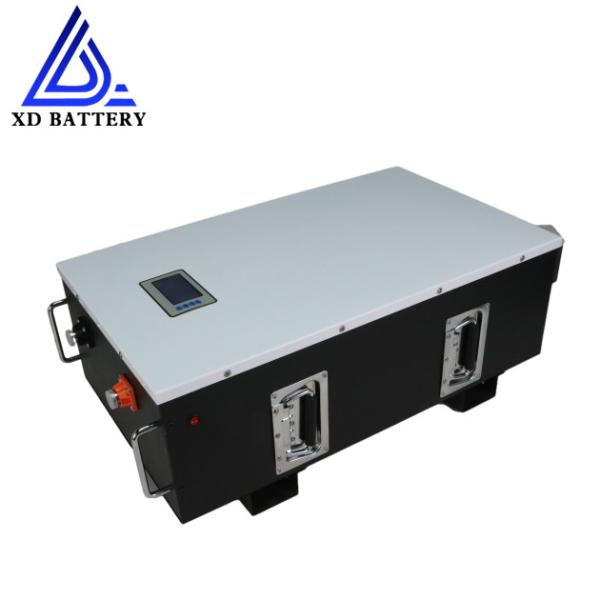

Customised 48v Lifepo4 Battery Plastic Lfp Lithium Ion Battery
Item:51.2V 100AH lifepo4 battery module, Wall mountable, Power wall.
Dimension: 620*370*205mm (Length*Width*Thickness)
Weight: 40KG
Max Charge Current:100A
Max continuous discharge current: 100A
Max power output: 5.12KWH
Communication port: On demand.
LED Screen: YES
Product Description
Parameter
| Serial number | project | General parameters |
| 1 | Number of series | 16S |
| 2 | Rated voltage | 51.2V or 48V |
| 3 | End of discharge voltage | 43.2V or |
| 4 | Charging voltage | Recommend 56.4V (56V – 58.4V) |
| 5 | Internal resistance (battery pack) | ≤100mΩ |
| 6 | Self-discharge rate | ≤2%/month |
| 7 | range of working temperature
(≤95%R.H.) | 0～65℃ charge
20～65℃ discharge |
| 8 | Storage temperature range
(≤95%R.H.) | -40～70℃ |
| 9 | Positive and negative lead way | Terminal 4P*1 Fence terminal*1 |
| 10 | Display screen | LED display, four physical buttons |
| 11 | Protective function | Overcharge, over discharge, short circuit, overload, over temperature, etc. |
| 12 | Shipment product charge | 50% power when delivery |
| 13 | Packing material | Carton or Wooden box |
Battery Management System
| S/N | function name | Function setting | Cell voltage alarm | Settings Value | Reference setting range |
| | Monomer over-voltage protection | Turn on | Over-voltage protection voltage | | |
| | Cell under-voltage protection | Turn on | Under-voltage protection voltage | | |
| | Battery over-voltage protection | Turn on | Over-voltage protection voltage | | |
| | Battery under-voltage protection | Turn on | Under-voltage protection voltage | | |
| | Cell high temperature protection | Turn on | Cell high temperature protection | | ~90℃60℃-5~5℃7-20℃-40~-10℃8105A0A~110A |
Performance Curves
Packing & Shipping
Packing
Carton + Wooden + Pallet
Shipping
Express | By air | By sea
According to your requirments
Customers Feedback
Customers Projects and Application
Our Products Passed the certifications of CE / ISO9001 / ISO14001 / Rohs
Our Services
Warranty : 3- 5 years
OEM / ODM : Avaliable
MOQ : 10 piece
